Battery Cradle Adaptor Assembly Alternative for Emerson 701PBKKF

Part Number: EBA01

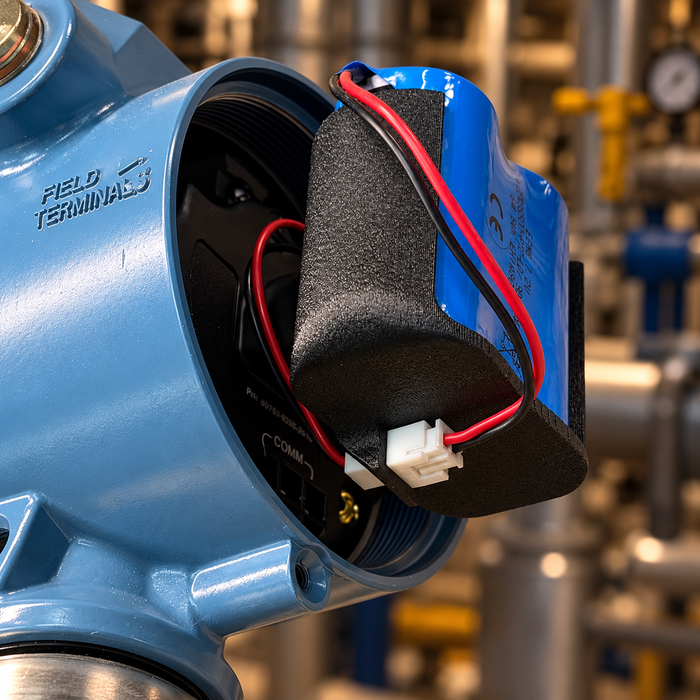

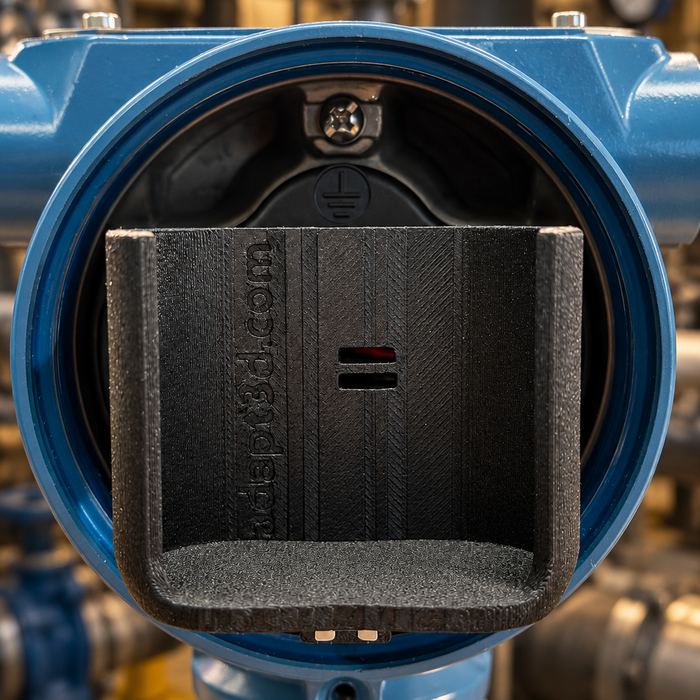

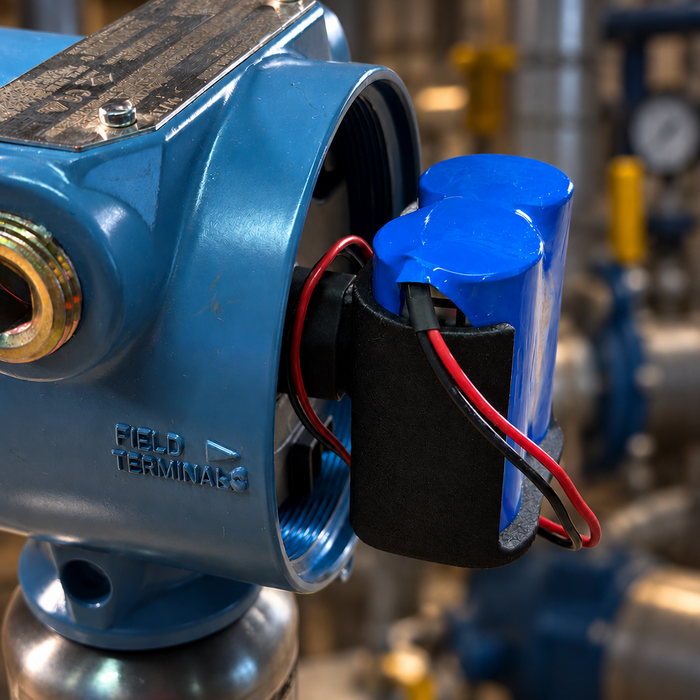

This cradle assembly is designed for use with EEMB 7.2V Size C battery packs (not included). When paired with the battery packs, it serves as a plug-and-play replacement for Emerson 701PBKKF battery modules. This product is a re-usable assembly. No modification to the existing equipment is required.

If your aftermarket battery packs are not already equipped with a male JST XH 2.54mm connector, one will be needed for use with this assembly. Male connectors can be purchased HERE.

Features:

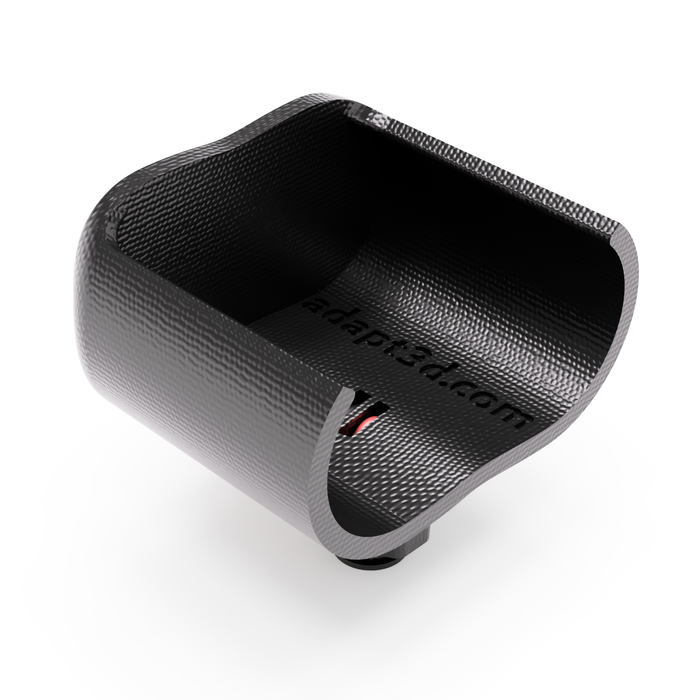

• Rugged carbon fiber-reinforced ASA chassis engineered for demanding industrial environments. Provides excellent rigidity and dimensional stability along with resistance to UV exposure, weathering, and temperature extremes. The material has a heat-deflection temperature of approximately 217°F (103°C) and is well suited for equipment exposed to harsh environmental conditions.

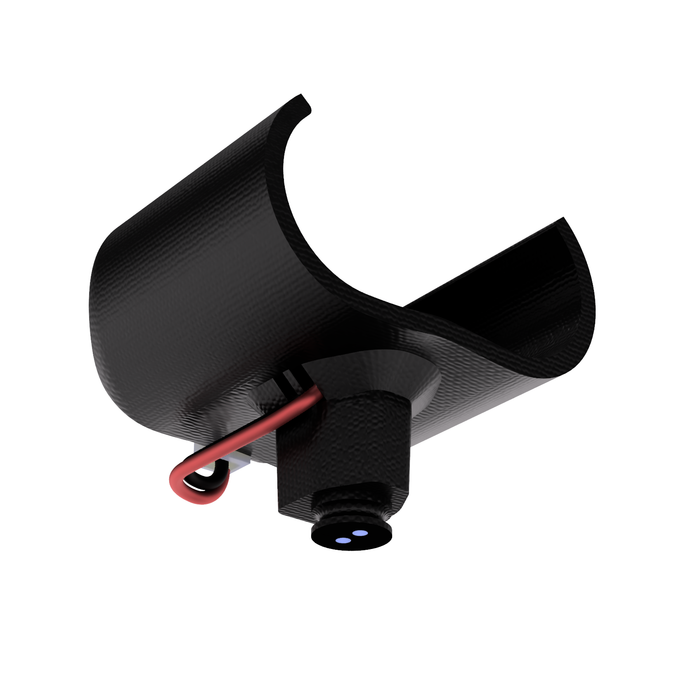

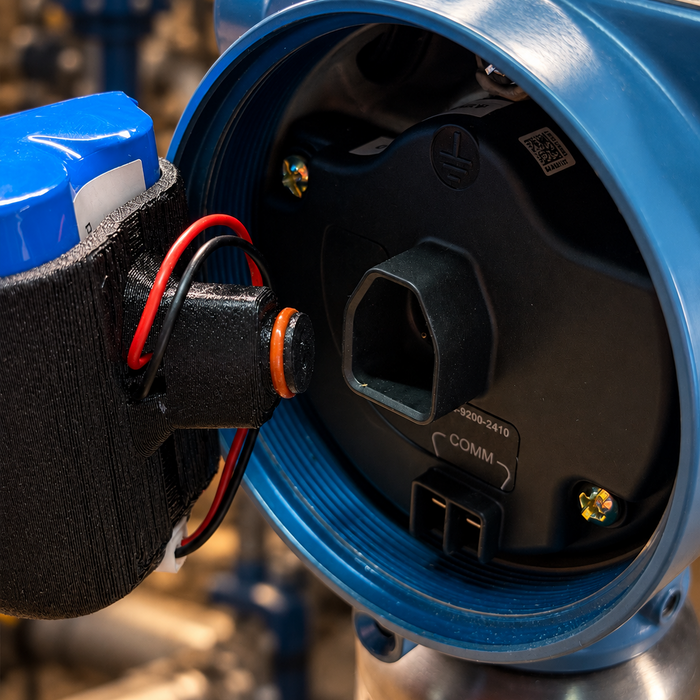

• Pre-installed industrial-grade 70A silicone O-ring with a wide -76°F to 437°F (-60°C to 225°C) operating temperature range, providing dependable flexibility, retention, and cushioning even in extreme Arctic conditions. The O-ring may be omitted without affecting basic fitment or operation. O-ring from original Emerson battery assembly is also compatible and may be overhauled.

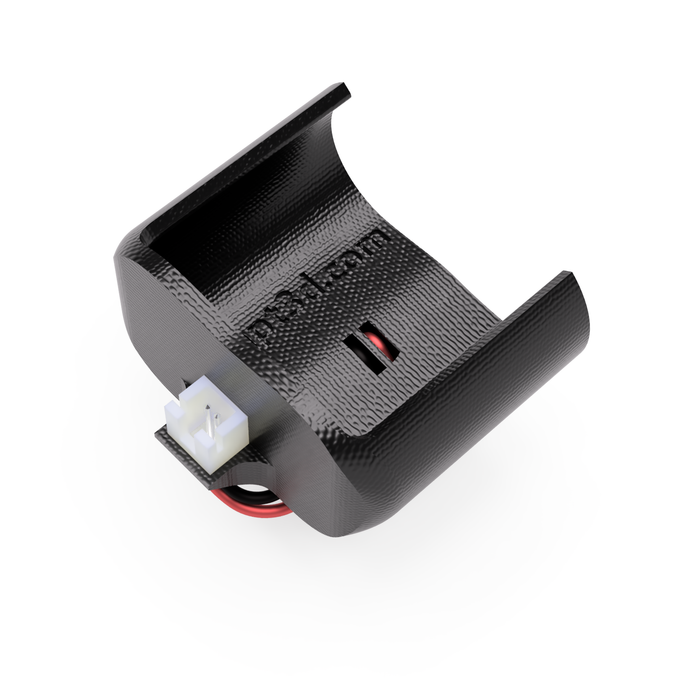

• Pre-installed wiring harness constructed with 24 AWG conductors and a JST XH 2.54mm female connector for straightforward plug-and-play installation.

• Designed and produced in the USA

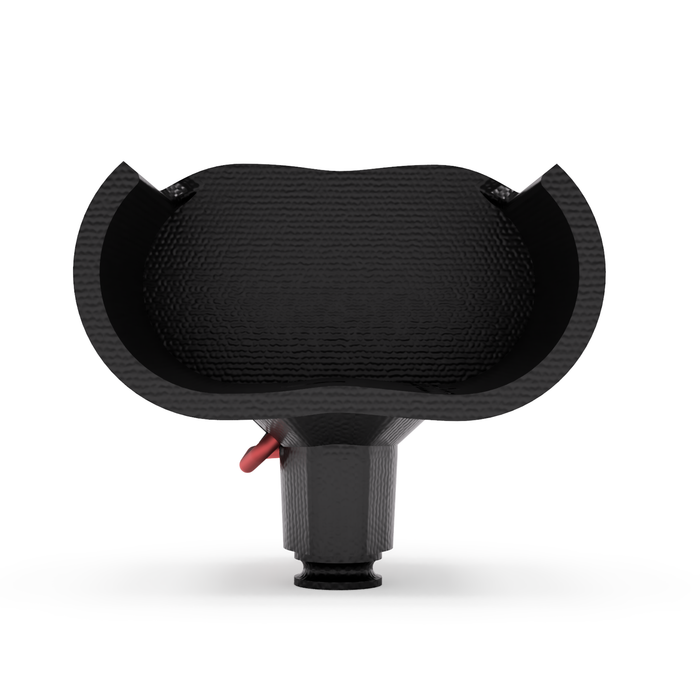

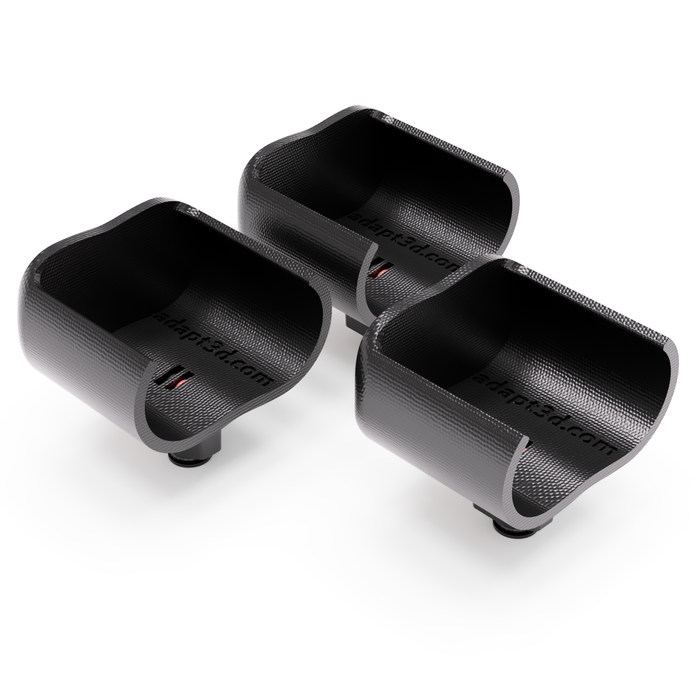

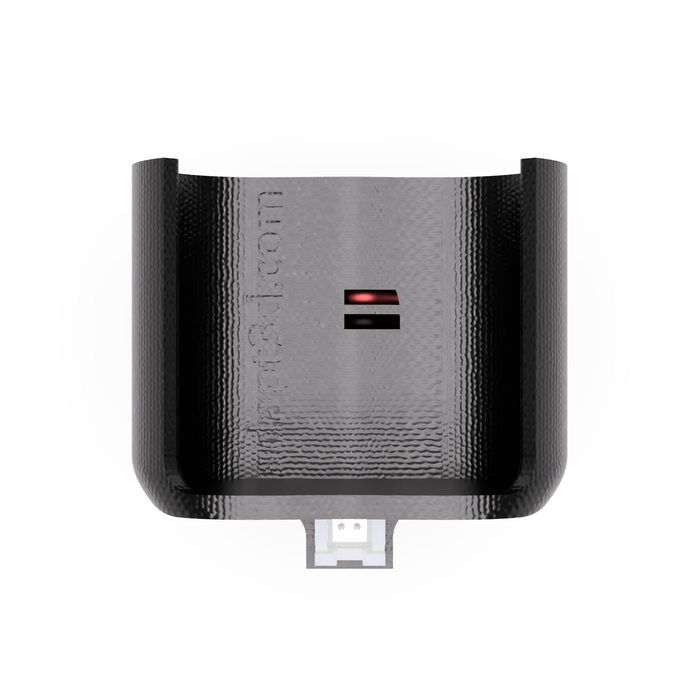

Some images are digital renderings. Actual appearance may vary.

Important Safety & Application Notice: This is an independently manufactured aftermarket product and is not manufactured, endorsed, sponsored, or approved by Emerson. “Emerson” and associated product/model names are used solely to identify compatibility.

This assembly provides an alternative battery configuration and does not replicate the original manufacturer's battery connection or sealing arrangement. The original battery configuration may incorporate sealing features intended to isolate the electrical connection from potentially combustible gases or vapors. In this alternative assembly, the electrical connection is relocated and does not retain the original sealed connection configuration.

This product has not been represented or certified as intrinsically safe, explosion-proof, or suitable for hazardous/classified locations unless specifically stated otherwise. The purchaser/end user is responsible for determining whether this product is appropriate for the equipment, operating environment, applicable regulations, and any hazardous-location requirements.
